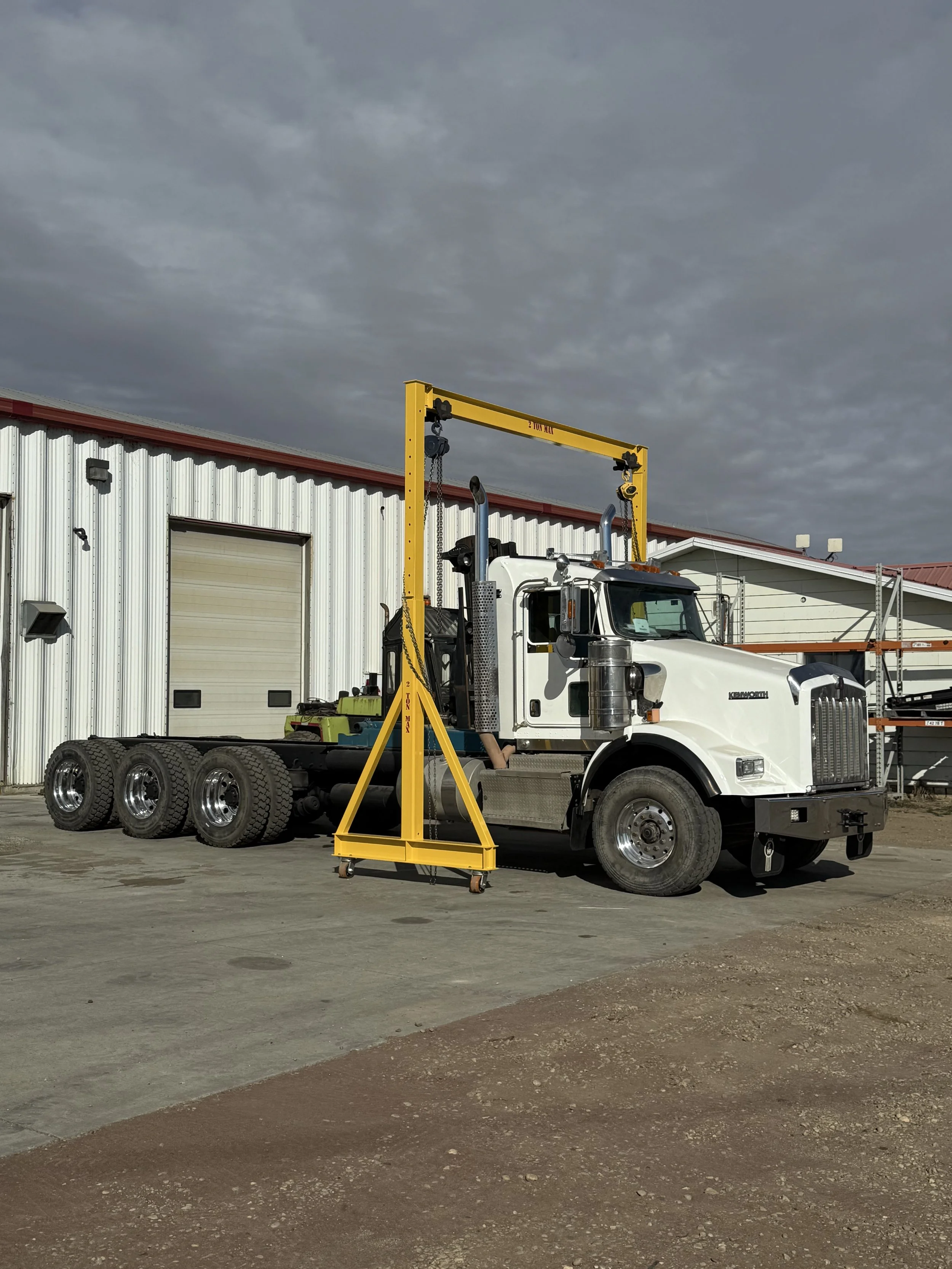

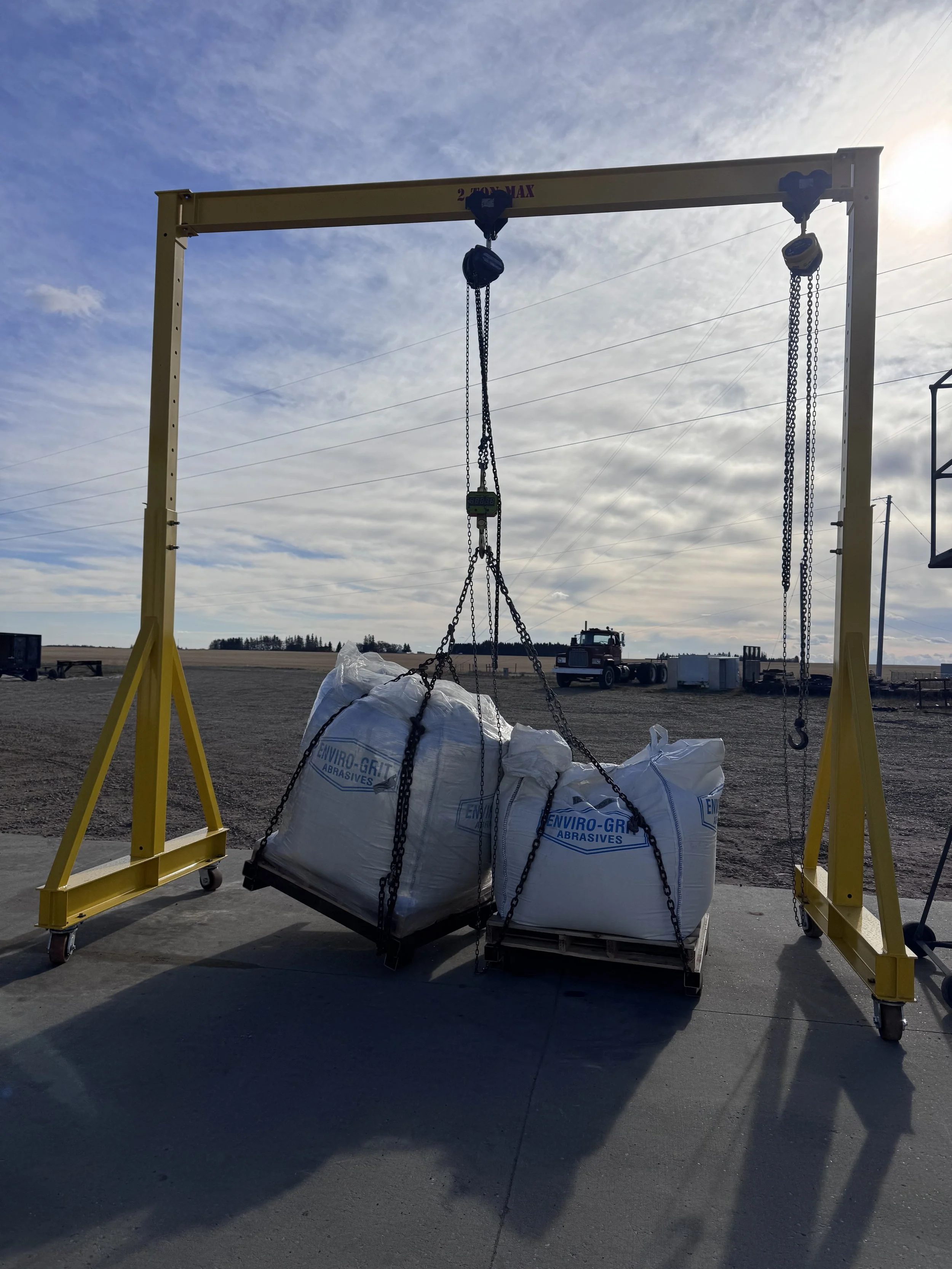

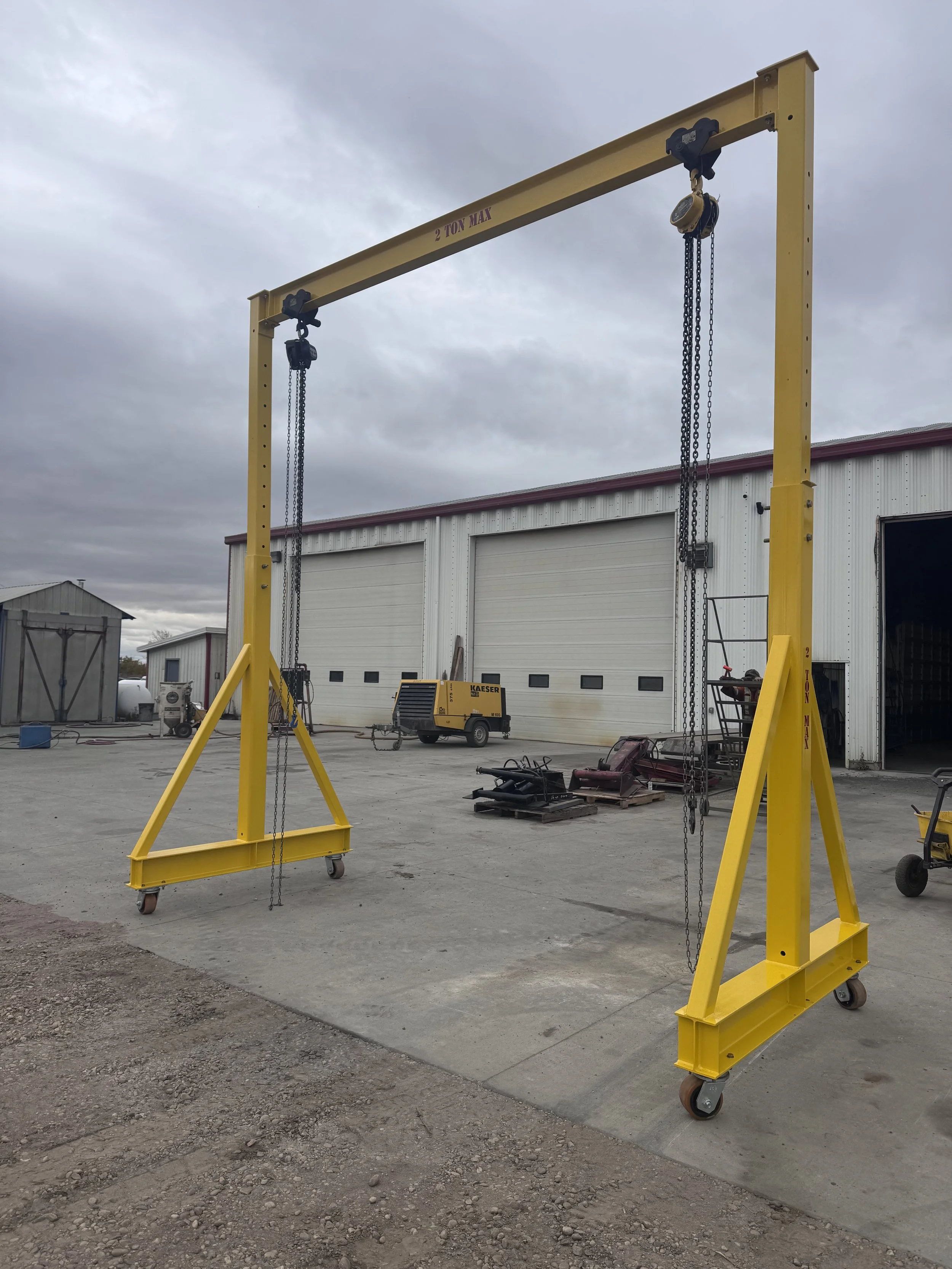

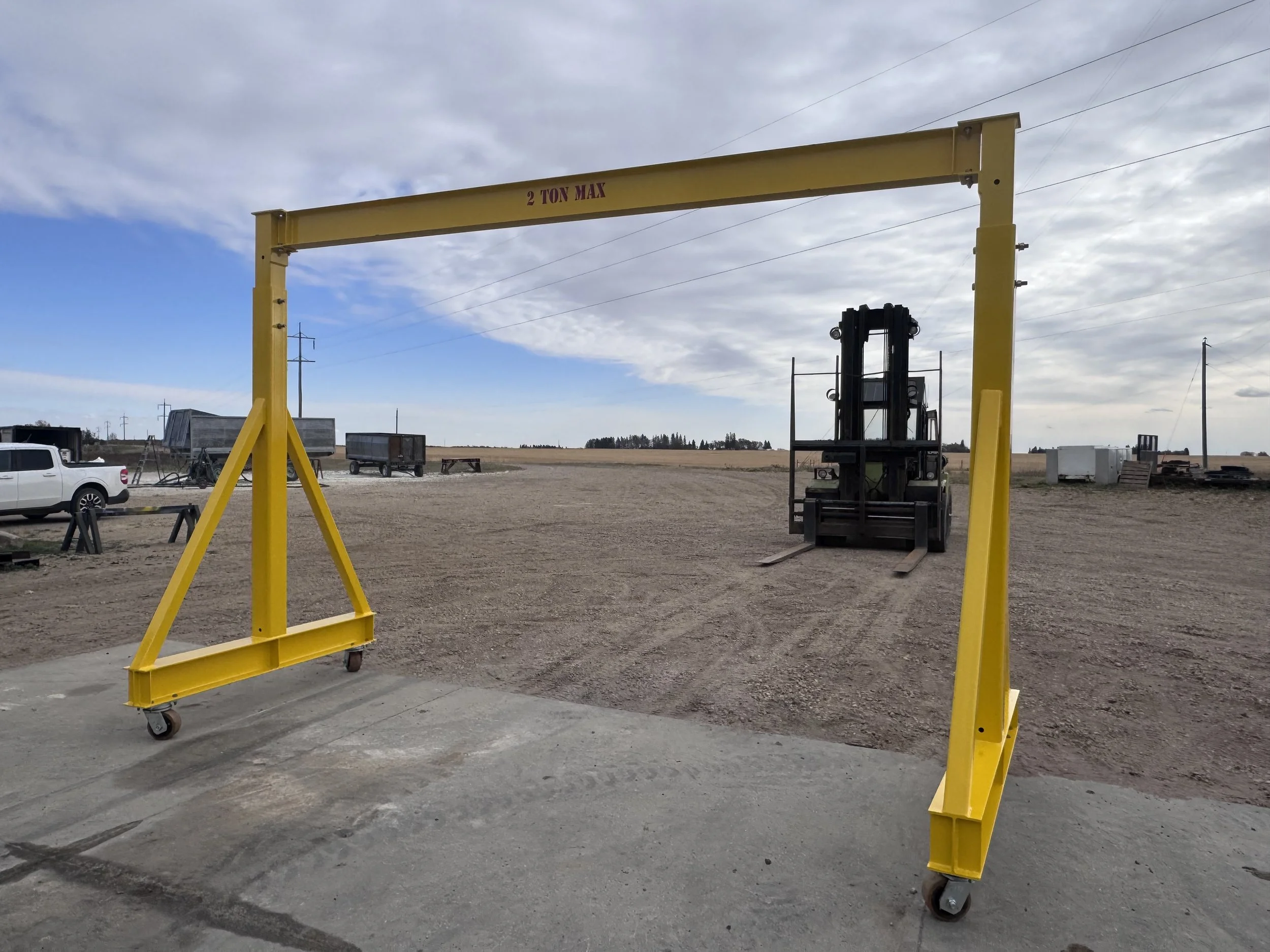

Gantry Crane

$7500

Our gantry cranes are adjustable in height and are engineered for a 3:1 safety lift factor to a 2 ton maximum load. It adjusts in 6” increments from 109” to 168” clearance under the beam.

These cranes are heavy duty with 6” tubing, I-beam, and 4600 lbs castors with polycarbonate wheels. Units are load tested and certified weld inspections completed before leaving the shop.

The cranes are sandblasted and primed/painted using PPG Delfleet Essentials paint.

Trolleys and chain hoist extra.

Specifications

6” square tubing 3/16” thickness
5 1/2” square tubing 3/16” thickness
S8 I-beam
4600 lbs castors with 4000 lbs polycarbonate wheels (steel wheels available)
Certified weld inspection and load test completed on site
Units come sandblasted and primed/painted with PPG Delfleet Essentials paint

Dimensions

Standard height 119”
Standard clearance 109”

Extended height 177”
Extended clearance 168”

Adjustable height increments 6”

Overall width 168”
Clearance width 155”
